High-Resolution Thermal Camera — FLIR i64
The FLIR i64 is a professional-grade, app-enabled thermal imaging camera designed for advanced inspections that require higher resolution and greater accuracy. With a 480 × 640 thermal sensor, rugged design, and powerful connectivity, the i64 delivers precision insights for critical electrical, mechanical, and building diagnostics.
Engineered for accuracy: detect smaller faults, improve diagnostics,
and enhance reliability across your assets.
Key Features of the FLIR i64
- High Thermal Resolution: 480 × 640 pixels for ultra-clear imaging.
- Exceptional Sensitivity: < 40 mK NETD to reveal the smallest temperature differences.
- Wide Temperature Range: −20 °C to 550 °C, suitable for demanding industrial inspections.

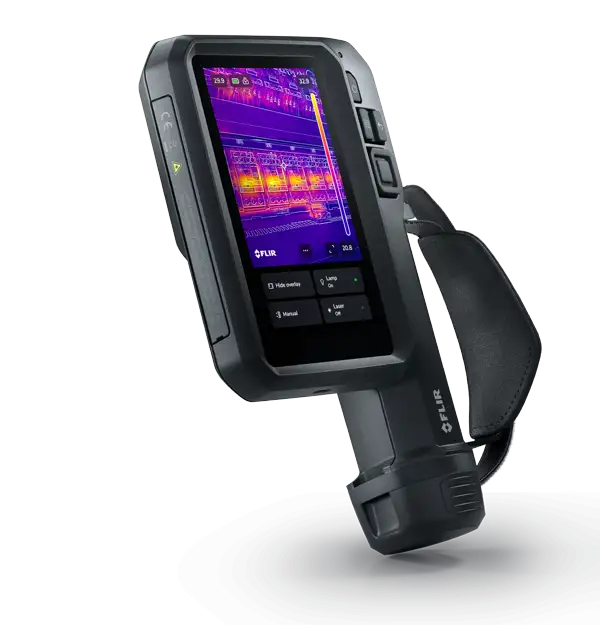

- 5” Touchscreen: Smartphone-like interface powered by ACE OS.
- Integrated Visual Camera: 8 MP with MSX® and picture-in-picture modes.
- Seamless Connectivity: Wi-Fi, Bluetooth, and cloud sync via FLIR Ignite.
- Rugged & Reliable: Drop-tested, IP54-rated, glove-friendly design.
Applications
The FLIR i64 is ideal for professionals who need to capture more detail and ensure reliable diagnostics in challenging environments. Common applications include:
- Electrical inspections of panels, switchgear, and connections.
- Mechanical equipment monitoring and predictive maintenance.
- Building diagnostics for HVAC, insulation, and water ingress issues.
- Industrial facilities where precision and scalability are critical.
FLIR i64 Specifications
📷 Imaging & Optical
- IR Resolution
- 480 × 640
- Thermal Sensitivity (NETD)
- <40 mK at 30 °C (86 °F)
- Field of View (FOV)
- 38° × 49°
- Spectral Range
- 7.5 – 13 µm
- Focus
- Fixed focus
- Image Frequency
- 30 Hz
- Display
- 5″ LCD, 720 × 1280 resolution
- Color Palettes
- Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
- Image Modes
- MSX®, Thermal, Picture-in-Picture, Digital camera
- Digital Camera
- 8 MP, Autofocus (FOV: 50.5° × 64.5°)
📏 Measurement & Analysis
- Accuracy
- ±2 °C (±3.6 °F) or ±2%
- Object Temperature Range
- -20 °C to 200 °C / 10 °C to 550 °C
- Emissivity Correction
- Variable from 0.1 to 1.0
- Spot Meter
- Center spot, box with min./max.
- Delta T
- Yes, NFPA 70B compliant
- Measurement Corrections
- Emissivity, reflection & atmosphere compensation
⚡ Power
- Battery Type
- Rechargeable Li-ion
- Operating Time
- ~4 hours (at 25 °C typical use)
- Charging Time
- 2 h (charger) / 4 h to 90% (in-camera)
- Charging System
- In-camera USB-C or external charger
- Power Management
- Auto shut-down
🌍 Environmental & Certifications
- Encapsulation
- IP54 (IEC 60529)
- Drop Test
- 2 m (6.7 ft)
- Shock / Vibration
- 25 g / 2 g
- Operating Temp
- -15 °C to 50 °C (5 °F to 122 °F)
- Storage Temp
- -40 °C to 70 °C (-40 °F to 158 °F)
- Humidity
- 95% RH (IEC 60068-2-30)
- Laser Classification
- Class 2
- Certifications
- FCC, CE, EN/IEC standards
📦 General
- Size (L × W × H)
- 225 × 136 × 73 mm
- Weight
- 0.8 kg (1.76 lb)
- Flashlight
- High-brightness LED
- Package Includes
- Camera, 2× battery, charger, USB-C cable, hard case, wrist strap, documentation
