App-Enabled Thermal Camera — FLIR i34
The FLIR i34 app-enabled thermal imaging camera brings the power of NFPA 70B-compliant thermal inspections to every technician—no matter their experience level. Built on the new ACE operating system, it works just like a smartphone for thermography: powered by apps, connected to the cloud, and designed to scale across teams.
Do more with less: sharper insights, faster inspections, and improved asset reliability—all in the palm of your hand.
Why Choose the FLIR i34?
- Sharp Thermal Resolution: 240 × 320 pixels for clear, reliable imaging.

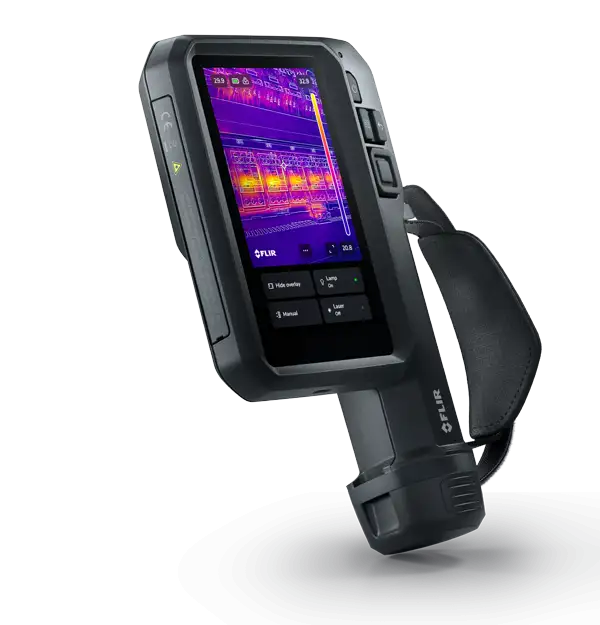

- Smartphone-like Usability: 5” responsive touchscreen with ACE OS interface.
- Always Connected: Seamless Wi-Fi and Bluetooth connectivity for instant sharing.
- Cloud-Ready: Sync with FLIR Ignite and other platforms for team-wide collaboration.
- Scalable: Deploy across multiple teams with ease.
Designed for Every Technician
Whether you’re a seasoned professional or just starting with thermography, the FLIR i34 empowers you to capture high-quality thermal data quickly and accurately. With rugged construction, intuitive apps, and NFPA 70B compliance, it’s the tool that helps your team improve uptime and extend asset lifespan.
FLIR i34 — Specifications
Imaging & Optical
| IR Resolution | 240 × 320 |
|---|---|
| Thermal Sensitivity / NETD | <40 mK at 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% |
| Field of View (FOV) | 38° × 49° |
| Digital Camera | 8 MP, Autofocus |
| Image Modes | MSX®, Thermal, Picture-in-Picture, Digital camera |
| Display | 5 in. color LCD, 720 × 1280 |
| Color Palettes | Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC |
Measurement & Analysis
| Object Temperature Range | -20°C to 200°C (-4°F to 392°F) 10°C to 450°C (50°F to 842°F) |
|---|---|
| Spot Meter | Center spot, box with min./max. |
| Emissivity Correction | Variable from 0.1 to 1.0, emissivity table of predefined materials |
| Isotherm | Above, Below |
| Delta T | Yes, NFPA 70B compliant |
| Measurement Corrections | Emissivity, reflected apparent temperature, atmospheric compensation |
Power
| Battery Operating Time | 4 hours at 25°C (77°F), typical use |
|---|---|
| Battery Type | Rechargeable Li-ion |
| Charging Time | 2 hours (charger), 4 hours to 90% (in camera) |
| Power Management | Automatic shut-down |
Environmental & Certifications
| Operating Temperature | -15°C to 50°C (5°F to 122°F) |
|---|---|
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Drop Test | 2 m (6 ft 7 in) |
| Encapsulation | IP54 (IEC 60529) |
| Certifications | FCC, CE, EN standards compliant |
General
| Camera Size (L × W × H) | 225 × 136 × 73 mm (8.9 × 5.4 × 2.9 in) |
|---|---|
| Camera Weight | 0.8 kg (1.76 lb) |
| Flashlight | Bright LED, manually activated |
| Package Includes | Camera with battery, extra battery, charger, USB-C cable, hard case, wrist strap, documentation |
