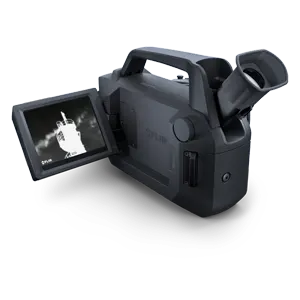

FLIR G304 Refrigerant

Imaging & Optical

Adjustable Viewfinder

Built-in, tiltable OLED, 800 × 480 pixels

Camera f-number

1.59

Color LCD

4″, 640 × 480 pixel rotatable, touchscreen LCD

Color Palettes

Arctic, White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC

Detector Pitch

30 μm

Detector Type

Focal plane array (FPA), cooled QWIP

Display Frame Rate

60 Hz

Field of View

14.5° × 10.8°, 23 mm (0.89 in)

Focus

Auto & Manual

Image Analysis

10 spots, 5 boxes with max/min/average, 1 line (horizontal or vertical), measurement corrections

Image Modes

IR image, visual image, high sensitivity mode (HSM), noise reduction filter

IR Resolution

320 × 240 (76,800 pixels)

Laser Spot

Yes

MPEG Video Recording

Yes

On Camera Display

Widescreen 800 × 480 pixel LCD, Tiltable 800 × 480 pixel OLED viewfinder

Radiometric IR Video

RTRR (.csq), Over UVC

Radiometric JPG

Yes

Sensor Cooling

Stirling Microcooler (FLIR MC-3)

Spectral Range

8.0 µm to 8.6 µm

Video Recording & Streaming

H.264 to memory card

Zoom

1 – 8× continuous, digital zoom

Measurement & Analysis

Accuracy

±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F)

Area Box

5 (min./max./avg.)

Delta T

Yes

Measurement Corrections

Reflected temperature, distance, atmospheric transmission, humidity, external optics

Profile

1 live line (horiz. or vert.)

Recording

MultiREC Recording; Record multiple files automatically in customizable order

Spot Meter

10

Temperature Range

-20°C to 250°C (-4°F to 482°F)
-20°C to 50°C (-4°F to 122°F)
5°C to 100°C (41°F to 212°F)
50°C to 150°C (122°F to 302°F)
100°C to 200°C (212°F to 482°F)

Thermal Sensitivity

<15 mK @ 30°C (86°F)

Communication & Data Storage

Communication Interfaces

USB 2.0, Bluetooth via headset, Wi-Fi, HDMI

Image File Format

Standard JPEG, measurement data included. Infrared-only mode

Radio

Operating frequency:
•Bluetooth + EDR: 2402–2480 MHz
•WLAN 2.4 GHz: 2412–2462 MHz
•WLAN 5 GHz: 5150-5250 MHz Note that frequency band 5150-5250 MHz is for indoor use only, see national regulations.

RF output (EIRP)
• Bluetooth + EDR: <10 dBm
•WLAN: <17 dBm

Antenna
•Integrated PIFA antenna (gain: maximum 2.6 dBi)

Storage Media

Removable SD card

Video Out

HDMI, DVI

General

Annotations

Voice: 60 seconds with Bluetooth on still images and video
Text: Text from predefined list or soft keyboard on touchscreen
Image Sketch: Yes, on infrared only

Cloud Services

Via Wi-Fi; FLIR Ignite for direct, secure image uploading, organizing, storage, and sharing (required firmware available)

FLIR Inspection Route

Enabled in the camera

GPS [removable]

Location data automatically added to every still image and first frame in video from built-in GPS

Laser Pointer

Class 2

Package Includes

Infrared camera with lens, battery (2 pcs), battery charger, power supply including multi-plugs, hand strap, neck strap, lens cap, lens cap strap, memory card, HDMI-HDMI cable, USB cable, screwdriver TX20, knob screw (optional screw for the rear cover), printed documentation, hard transport case

Packaging Size

400 × 190 × 510 mm (15.7 × 7.5 × 20.1 in.)

Size [L x W x H ] w Lens

251.6 mm × 164.5 mm × 170.9 mm (9.9 in × 6.48 in × 6.73 in)

Weight [incl lens & batteries]

3 kg (6.18 lb)

User Interface

Languages

21

Power

Battery operating time

>2.5 hours at 25°C (68°F) and typical use

Battery Type

Rechargeable Li-ion battery; 7.4 V, charged in camera or separate 2-bay charger

Charging Time

2.5 hours to 95% capacity, charging status indicated by LEDs

Start Up Time

Typically 7 min. at 25°C (77°F)

Environmental & Certifications

Certifications

RoHS: 2011/65/EU
WEEE: 2012/19/EU
RED: 2014/53/EU
EMC: ETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 55032 (emission), EN 55035 (immunity), EN 61000-4-8 Level 5 (magnetic field), EN 61000-6-2, Immunity Industrial Environment, FCC 47 CFR part 15 B, class B (emission), ICES-003

Encapsulation

IP54 (IEC 60529)

Mounting

UNC ¼”-20

Operating Temperature Range

-20°C to 50°C (-4°F to 122°F)

Shock & Vibration

Shock: 25 g (IEC 60068-2-27); Vibration: 2 g (IEC 60068-2-6)

Storage Temperature Range

-30°C to 60°C (-22°F to 140°F)
